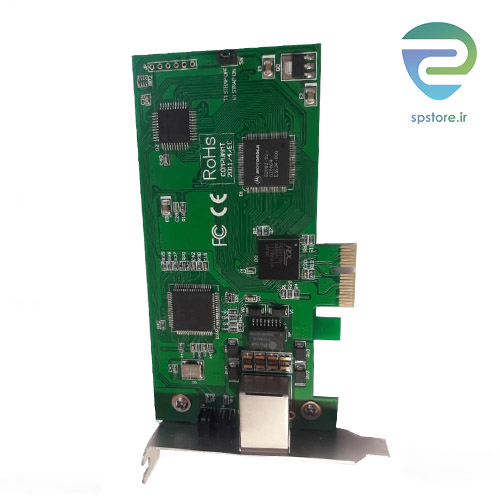

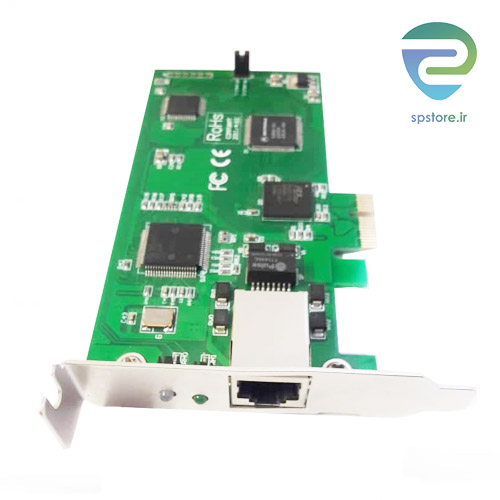

Asterisk Card_TE110E

توضیحات

TE110E is the worldwide affordable single port T1/E1/J1 card and delivers the great voice quality over telephony systems. It supports up to 30 voice calls or 2.048 Mbps of full duplex data throughput over one T1, E1, or J1 line.

• One T1/E1/J1 port with PCI interface for high performance voice and data applications
• Up to 30 Simultaneous voice calls
• 30-days “No Questions Asked” Return Policy
• Stable Function, and High Quality

The TE110E supports E1, T1 and J1 environments. It is selectable on a per-card or per-port basis. This feature enables signaling translation between E1 and T1 equipments and allows inexpensive T1 channel banks to connect with E1 circuits.

TE110E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisko, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

TE110E works with Asterisk^®, Elastix^®, FreeSWITCH^™, PBX in a Flash, trixbox^®, Yate^™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateways applications.

Target Applications

• Voice-over Internet Protocol (VoIP) Services
• Complex IVR Trees
• “Meet-Me” Bridge Conferencing
• Calling Card Platforms
• VoIP Gateways (support SIP, H.323, and IAX)
• Legacy PBX/IVR Services
• Voice/Data Router (replace expensive routers)
• PRI/Switch Compatibility – Network or CPE

Technical Specifications

• One T1/E1/J1 port with PCI interface for high performance voice and data applications
• Half-length PRI card
• 2U/4U Plate
• RJ48 connector
• 32 bit 33MHz PCI-E and fully PCI 2.3 compliant
• 32 bit bus master DMA data exchanges across PCI Express interface at 250 Mbytes/sec
• Autosense compatibility with 5 V and 3.3 V PCI busses
• Power: 2.6W Minimum, 3.9W Maximum at 3.3 V or 5 V.
• Operation temperature: 0°C to 50°C
• Storage temperature: -65°C to 125°C
• Dimension: 13cm*10.3cm*1.8cm
• Weight: 75g

PRI Switch Compatibility

• EuroISDN (PRI or PRA) – Q.931/Q.921
• Network or CPE
• AT&T 4ESS
• National ISDN 2
• CAS Voice Modes
• DMS 100
• Lucent 5E

Operating Systems

• Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

• 800-Mhz Pentium III
• 128MB RAM
• Available PCI-e Slot
